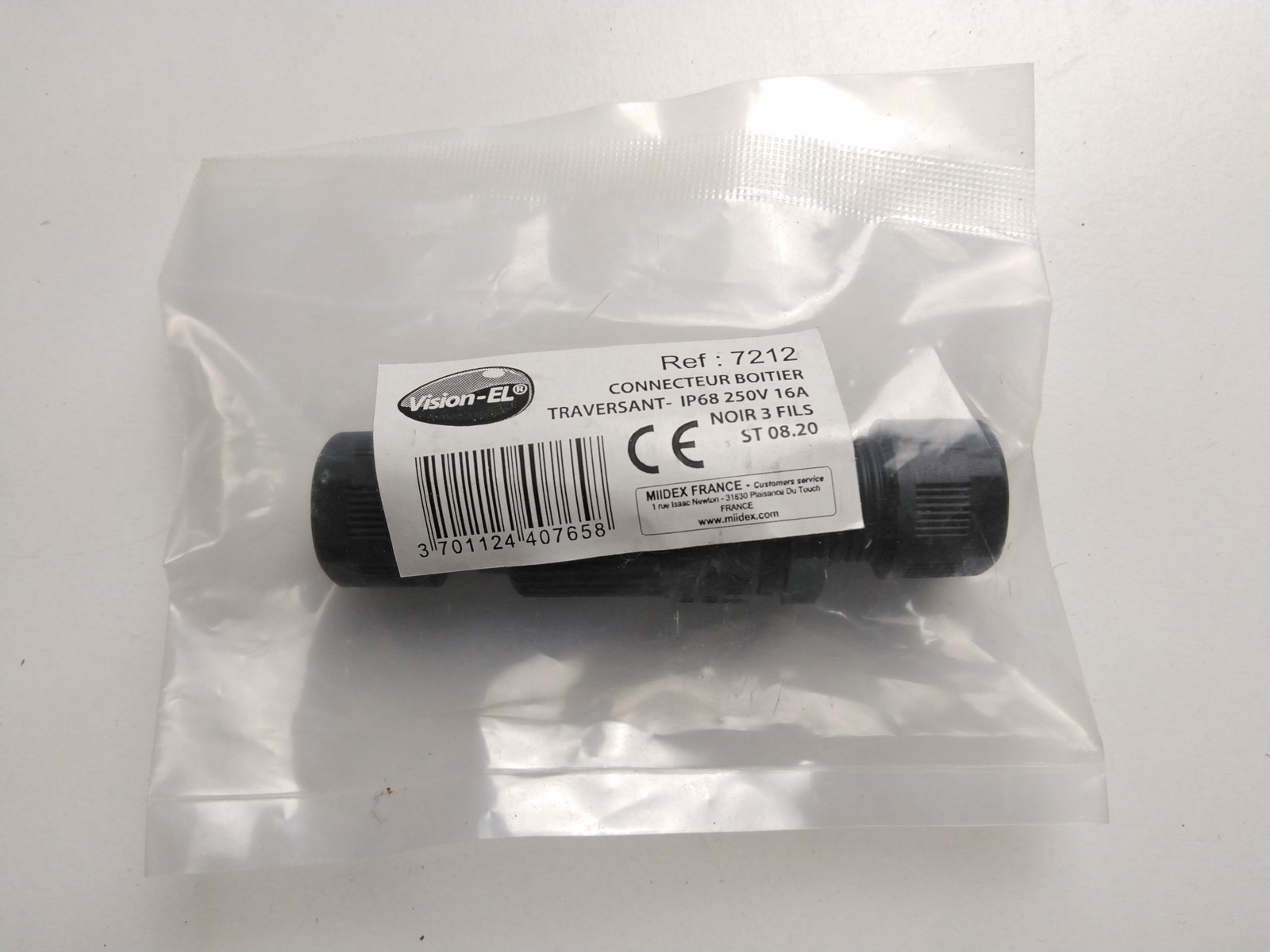

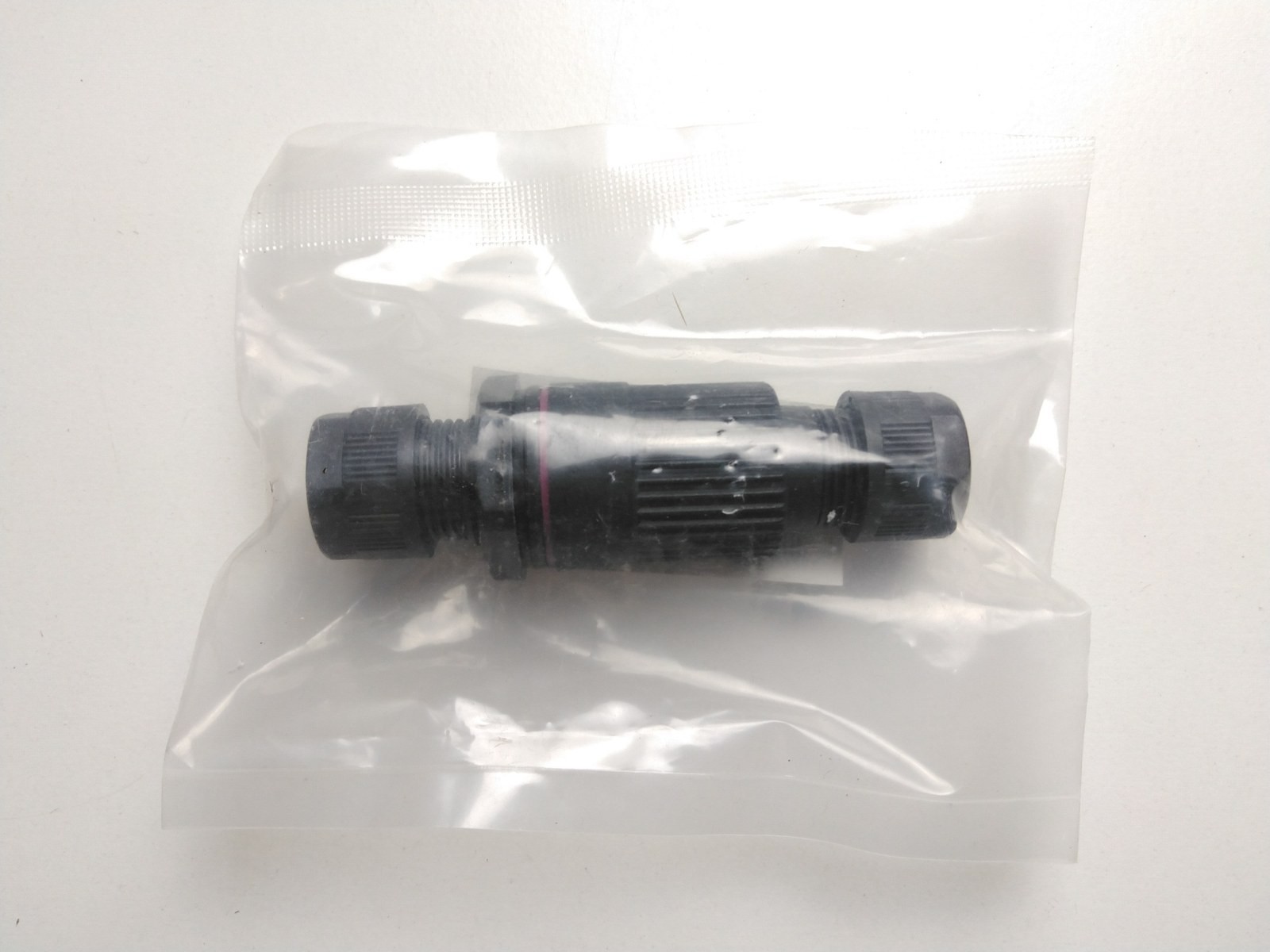

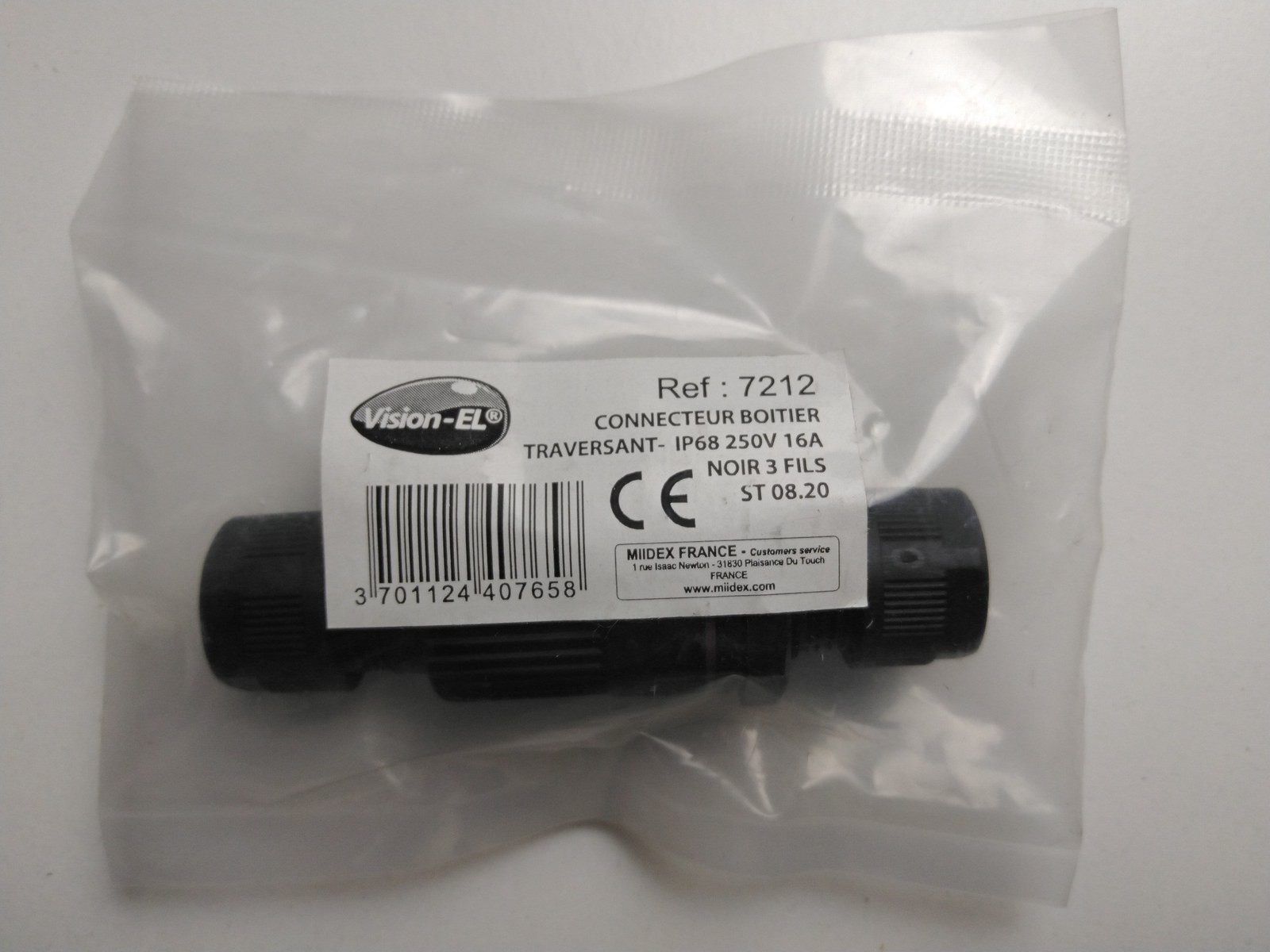

Vision-EL 7212 IP68 Waterproof Cable Connector 3-Pin 250V 16A Inline Coupler

New
Vision-EL
7212

Feed-Through Cable Connector · IP68 Waterproof · 250V 16A 3-Wire

EAN 3701124407658

Vision-EL 7212 straight feed-through cable connector designed for submersible and exterior electrical joints.

Shipped from France · EU Business Seller · No Import Duty Inside the EU

CE · VAT invoice available on request

Ingress Protection
Hermetic Inline
Cable Connection

This connector encases 3-pole electrical joints within an IP68 compression-gland enclosure. The dual cable-entry glands compress internal gaskets around incoming cables while the threaded central body locks tight to isolate live conductors from moisture and dust.

Product details
At a glance.

Product information

Reference

Vision-EL 7212

Brand

Vision-EL

Manufacturer part number

7212

EAN

3701124407658

Batch Code

ST 08.20

Material

Thermoplastic

Condition

New

Condition
As described. ✓New — Photos show the actual item.

Key Features & Benefits
Key
features. ✓

3-Pole Wiring Block

Phase, Neutral, and Earth connection

Accommodates standard three-conductor power lines up to 250V 16A for general lighting and outdoor utility circuits.
✓

Dual Cable Compression Glands

Mechanical strain relief

Threaded gland nuts compress the sealing rings directly onto the outer cable sheath to prevent pull-out and liquid intrusion.
✓

Durable Thermoplastic Body

Weather and UV durability

Constructed from rigid black polymer formulated to resist environmental degradation, outdoor weathering, and mechanical impact.

Technical data
Detailed specifications. Rated Voltage250V AC Rated Current16A Ingress ProtectionIP68 Number of Poles3 Connector TypeFeed-Through Inline Connector Housing ColorBlack Mounting TypeCable Mount / Inline Cable Gland TypeCompression Nut Gland ApplicationOutdoor / Submersible Electrical Connection

Applications
Where it excels. →Outdoor garden floodlight and spotlight wiring →Underground cable extensions and repair splices →Pond and fountain low-submersion electrical junctions →Architectural facade lighting installations →Signage and marquee power connections

Not suitable for
✕Permanent high-pressure deep water submersion exceeding rated depths ✕Installation by non-qualified persons (electrical regulations)

Please note
!You receive the part shown — nothing else unless visible in the photos.
