3M UR2 Scotchlok Butt Connectors 100 Pack Gel Filled Telecom Wire Splice

New
3M
UR2

Scotchlok UR2 Butt Connectors · Box of 100

EAN 051115262012

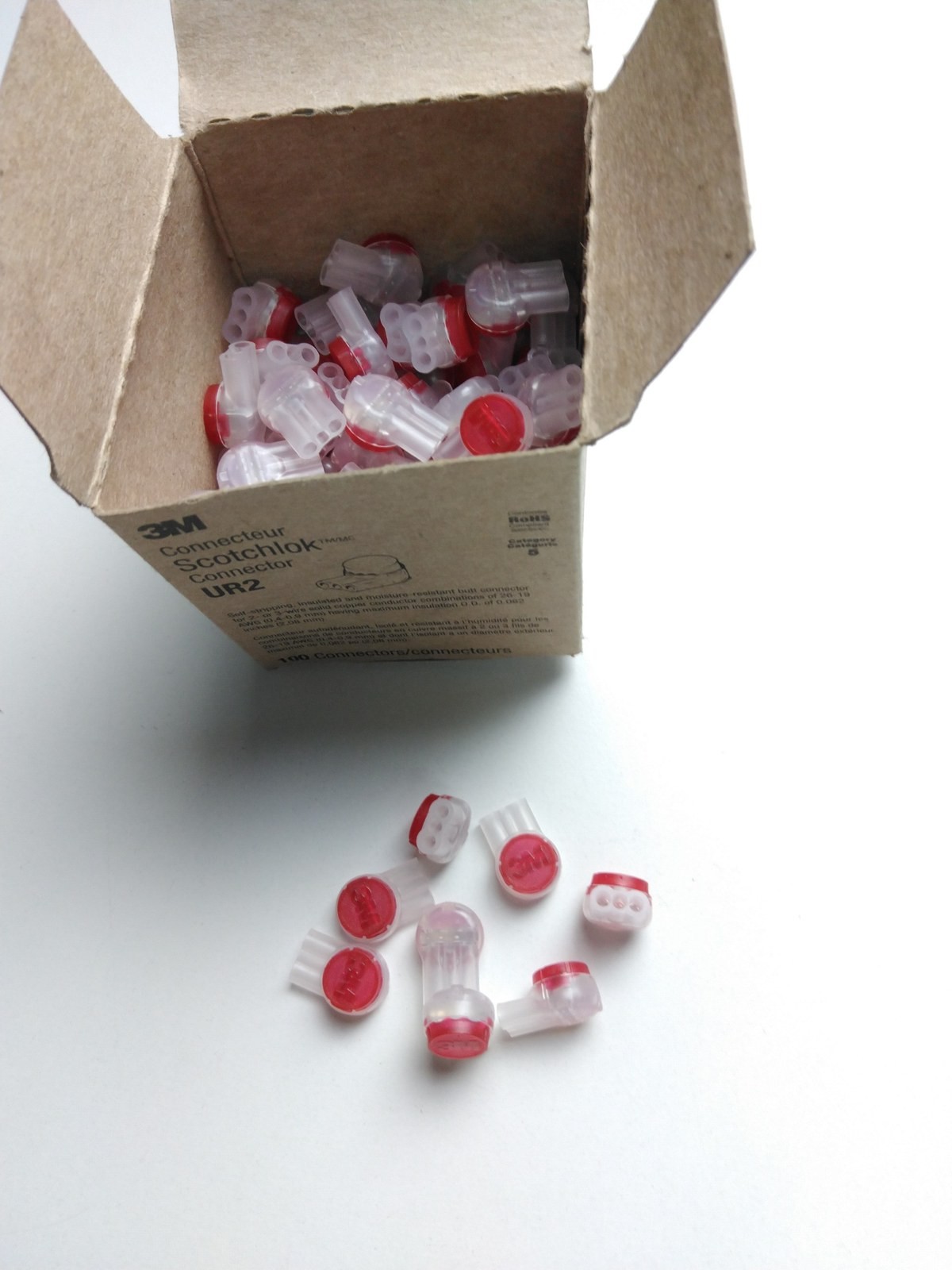

3M Scotchlok UR2 moisture-resistant IDC butt connectors in packaging of 100 units.

Shipped from France · EU Business Seller · No Import Duty Inside the EU

RoHS Compliant 2002/95/EC · Category 5 · VAT invoice available on request

Telecom Splicing Technology
Moisture-Resistant
Self-Stripping Connection

The factory-injected sealant encapsulates the contact area to prevent moisture ingress and corrosion in outdoor or underground telecom installations.

Product details
At a glance.

Product information

Reference

3M UR2

Brand

3M

Manufacturer part number

UR2

EAN

051115262012

Product Code

80-6113-2759-6

Material

Condition

New

Condition
As described. ✓New — Photos show the actual item.

Key Features & Benefits
Key
features. ✓

Insulation Displacement Contact

No wire stripping needed

The internal U-contact pierces through conductor insulation upon compression, establishing a gastight connection without pre-stripping.
✓

Moisture-Resistant Gel Filling

Long-term environmental protection

Pre-filled with specialized sealant that surrounds the connection point to seal out moisture, vapor, and corrosive contaminants.
✓

Category 5 Performance

High-frequency signal transmission

Rated for Category 5 telecommunications and data applications.
✓

Factory-Packaged Quantity

Box of 100 connectors

Supplied in standard 100-count carton ready for structured cabling, telecom maintenance, and intercom wiring jobs.

Technical data
Detailed specifications. Connector TypeIDC Butt Splice Connector Conductor Capacity2 or 3 Wires Conductor TypeSolid Copper Moisture ResistanceFactory Gel-Filled Sealant Quantity Per Box100 Units Contact TypeU-Contact Insulation Displacement Network RatingCategory 5 Application StandardTelecommunications and Low Voltage Signal Compatible Crimping ToolScotchlok E-9 Series Crimping Tool Insulation MaterialPolypropylene Housing Cap ColorRed

Applications
Where it excels. →Telephone line splicing and bridge tapping →Security alarm sensor and loop wiring joints →Intercom and door access control line repairs

Not suitable for
✕Stranded copper wire conductors ✕AC mains power electrical connections

Please note
!You receive the part shown — nothing else unless visible in the photos.
