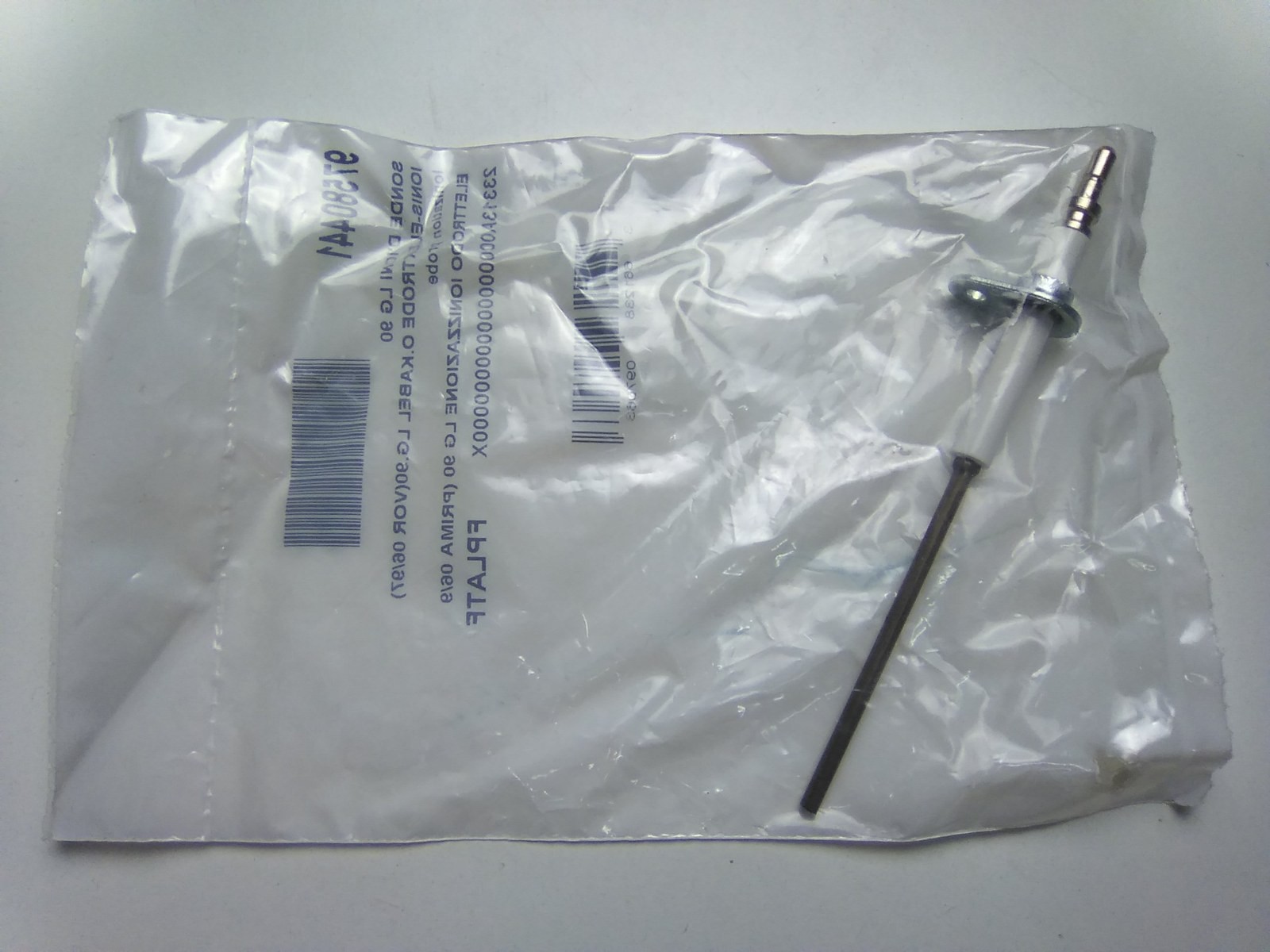

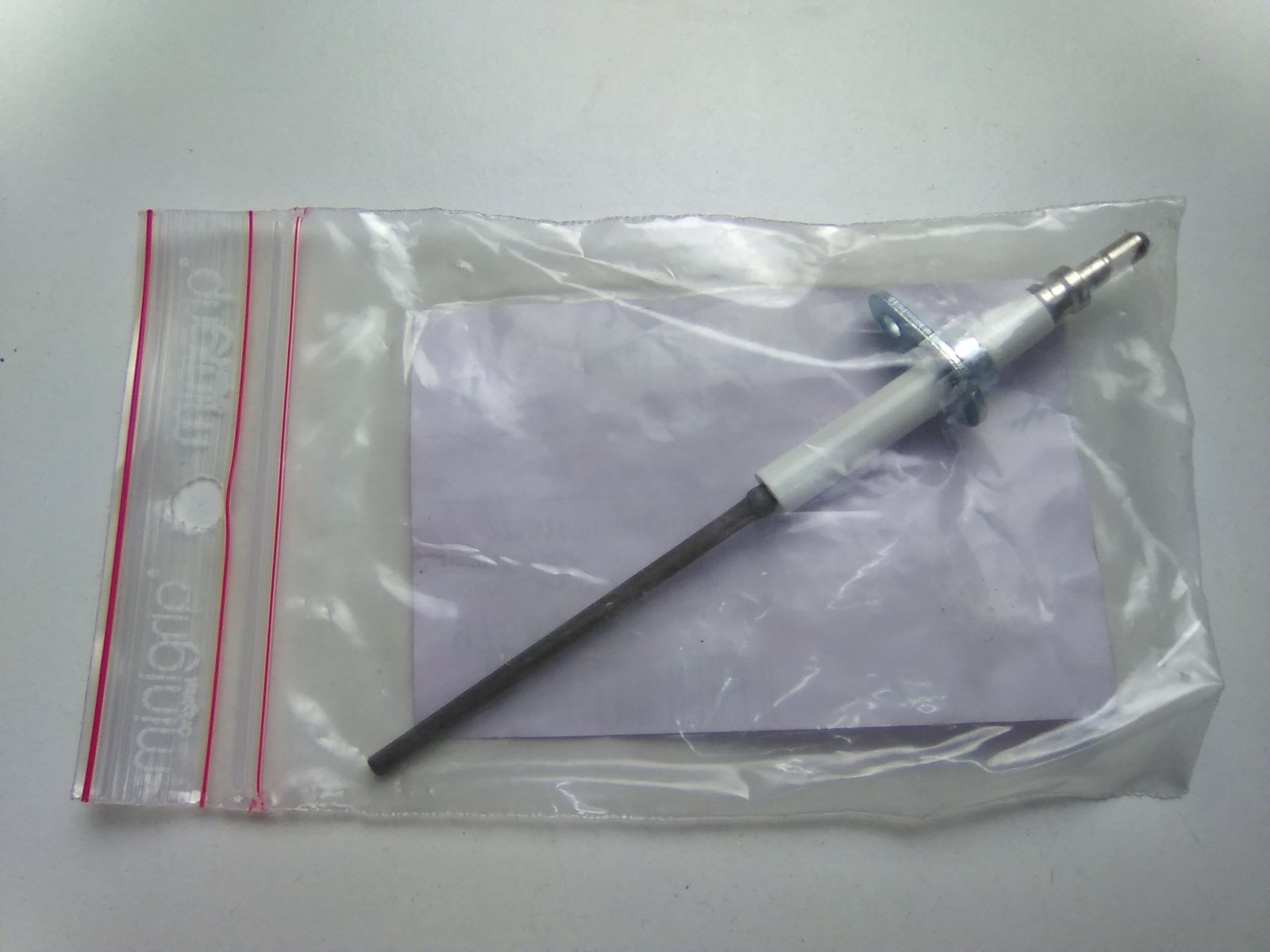

De Dietrich 97580441 Ionisation Probe Electrode 90mm Gas Boiler Flame Sensor

Combustion Safety & Flame Sensing
Direct flame monitoring
for safe burner operation

This ionization electrode detects the presence of flame via electrical rectification across the combustion zone. The ceramic insulator isolates the electrical signal path while the heat-resistant sensing rod extends into the burner flame to deliver continuous feedback to the burner control unit.

Product Details
At a glance.

Product Information

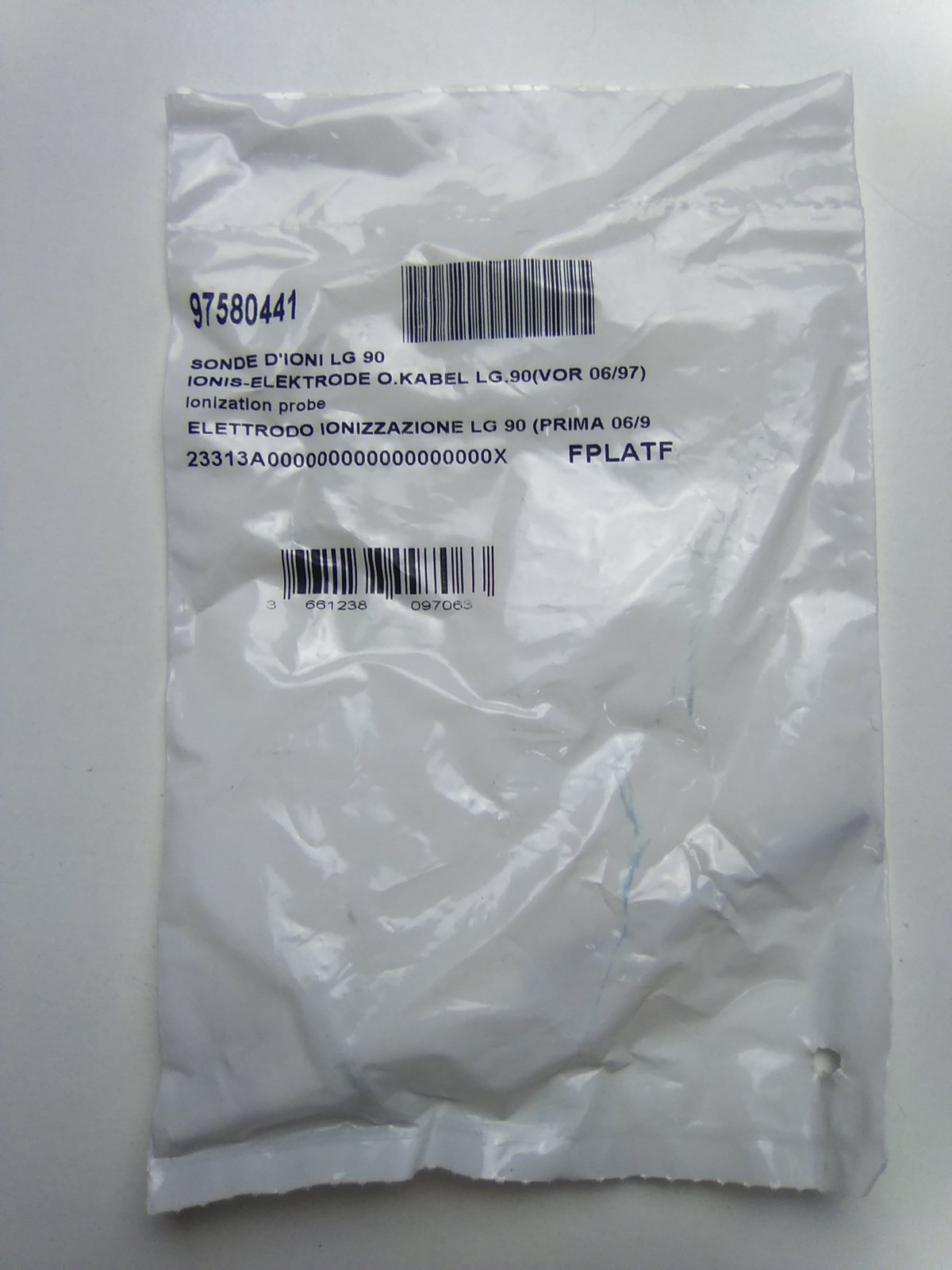

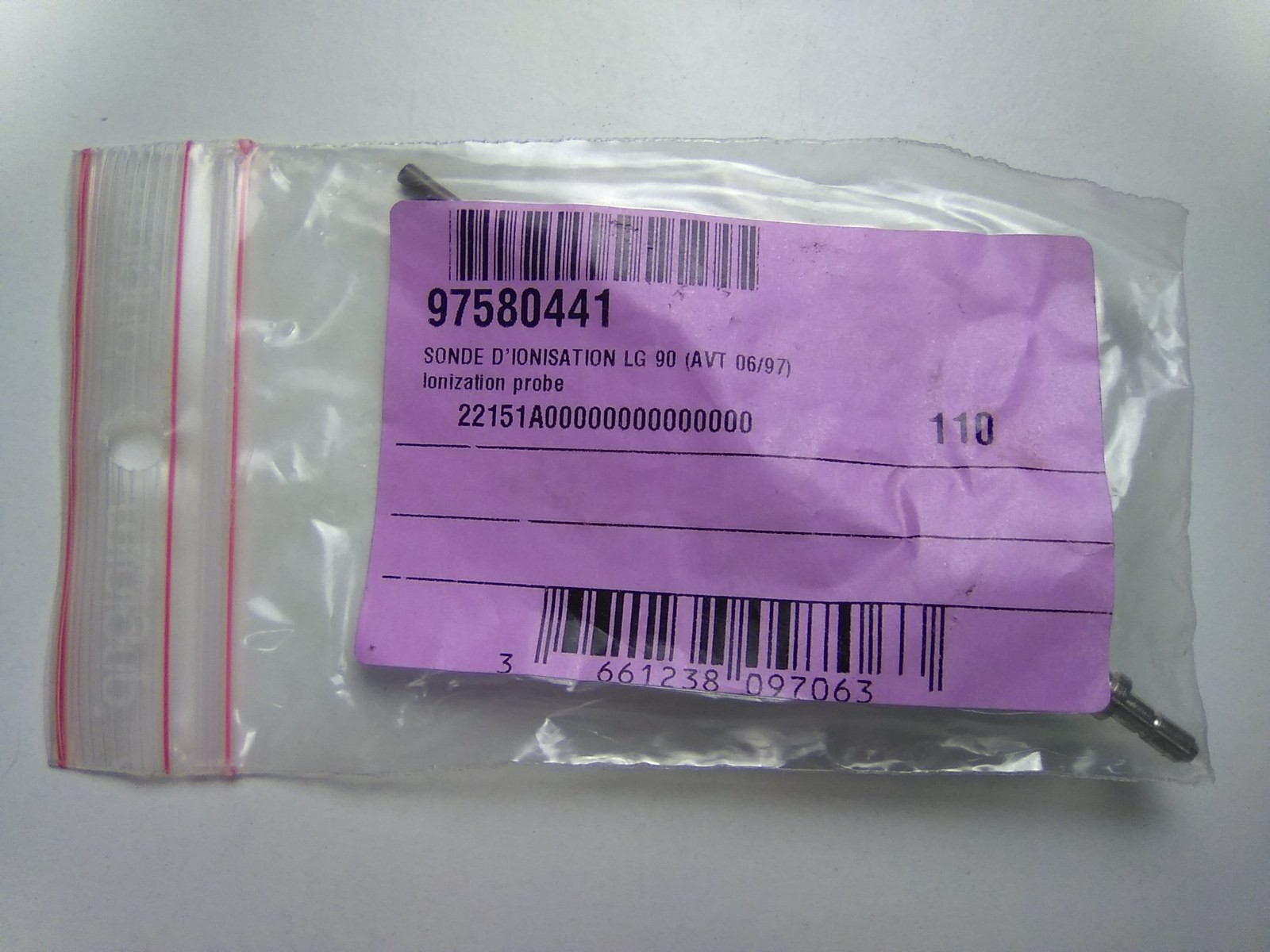

Model / MPN

97580441

EAN

3661238097063

Condition

New

Dimensions

90 mm active length

Key Features & Benefits
Key
features. ✓

Precise Flame Rectification

Continuous safety monitoring

Generates a stable microamp ionization signal when immersed in the burner flame to verify ignition and maintain safe gas flow.
🛡️

High-Grade Ceramic Insulator

Prevents electrical leakage

Provides robust dielectric insulation against high thermal loads and ensures signal transmission directly to the burner controller.
🌡️

High-Temperature Alloy Rod

Thermal and oxidation resistance

Constructed from refractory metal alloy to withstand continuous combustion temperatures without degrading or bending.
✓

Exact 90 mm Specification

Standardized fitment

Matches pre-June 1997 boiler burner geometry, ensuring the tip is correctly positioned inside the flame core.
✓

Integrated Mounting Flange

Secure mechanical alignment

Equipped with a single-hole fixing bracket that ensures consistent alignment and stable grounding on the burner chassis.

Technical Data
Detailed Specifications. Component Type Flame Ionization Probe / Flame Detection Electrode Probe Length 90 mm Mounting Flange Integrated single-screw bracket Connection Type Terminal pin connector Insulation Material Technical ceramic Rod Material High-temperature stainless steel alloy Cable Configuration Without cable Application Compatibility Appliance versions manufactured prior to June 1997 Detection Principle Flame rectification ionization signal Operating Environment Gas burner combustion chamber

Applications & Compatibility
Where it excels. → Replacement of worn or oxidized ionization electrodes during annual boiler service → Resolving flame detection lockout errors (loss of ionization signal) → Routine overhaul of gas combustion heads manufactured prior to 06/1997 → Emergency repair of residential and commercial gas boilers

Not suitable for
✕ Boiler models manufactured after June 1997 requiring different probe geometry ✕ Direct high-voltage spark ignition applications requiring dedicated spark gap ✕ Installation by non-qualified persons (gas appliance safety regulations) Verified informationCompatible with (per distributor documentation)De Dietrich DTG 120 ECONOX
